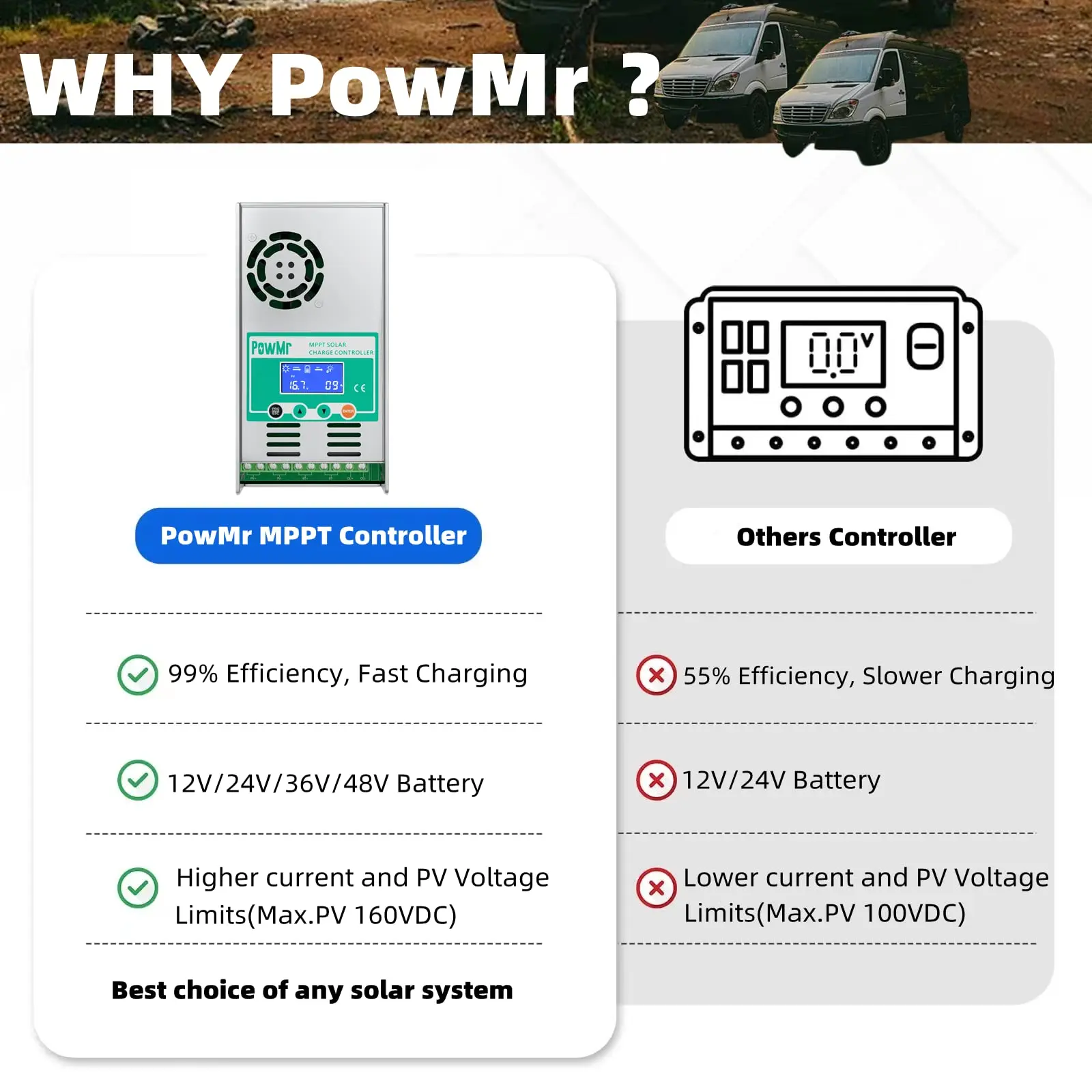

>>Features
-
100% MPPT Charge controller
-
Intelligent Maximum Power Point Tracking technology
-
Built-in DSP controller with high performance
-
Automatic battery voltage detection 12V/24V/36V/48V
-

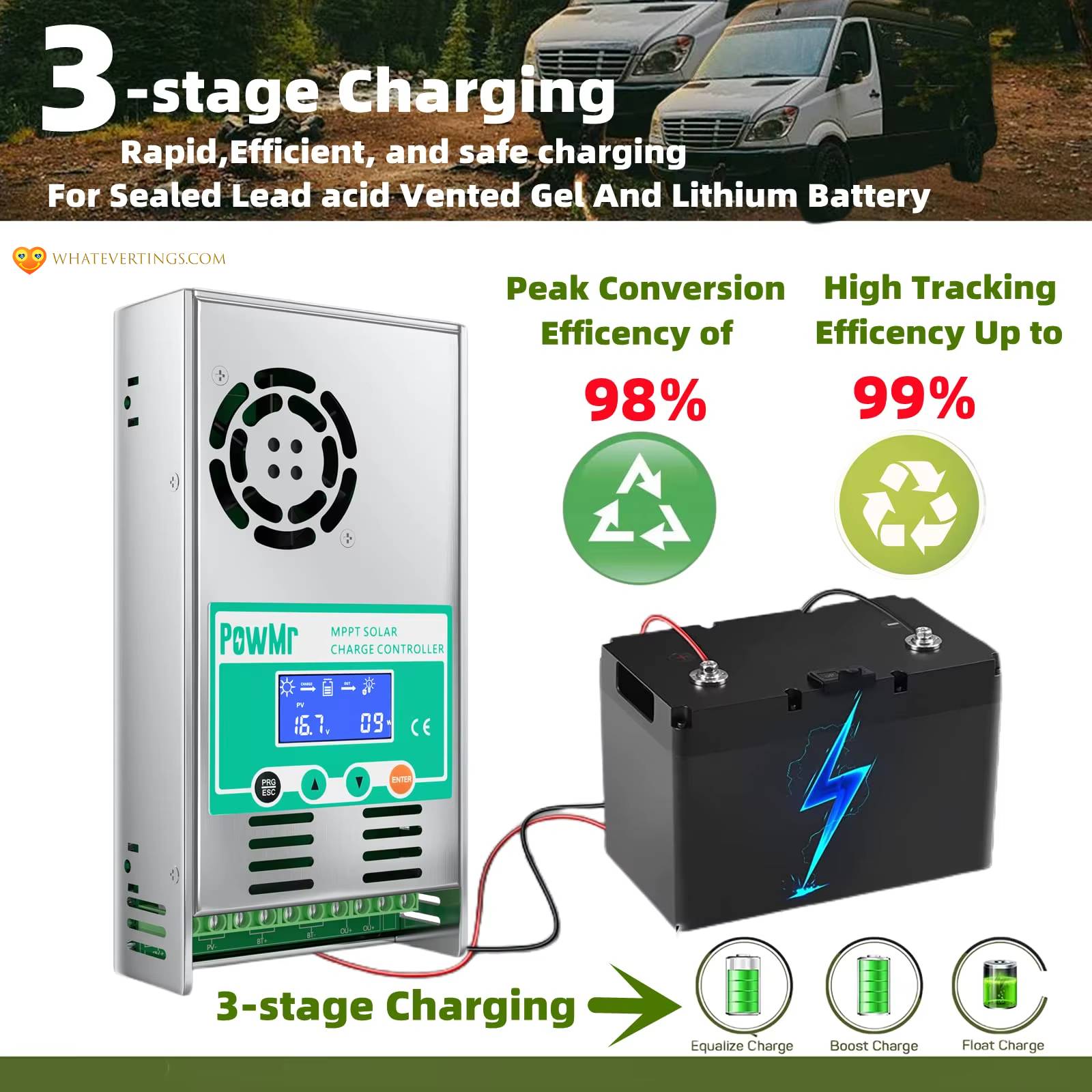

Three-stage charging optimizes battery performance
-
Multi-function LCD displays
-

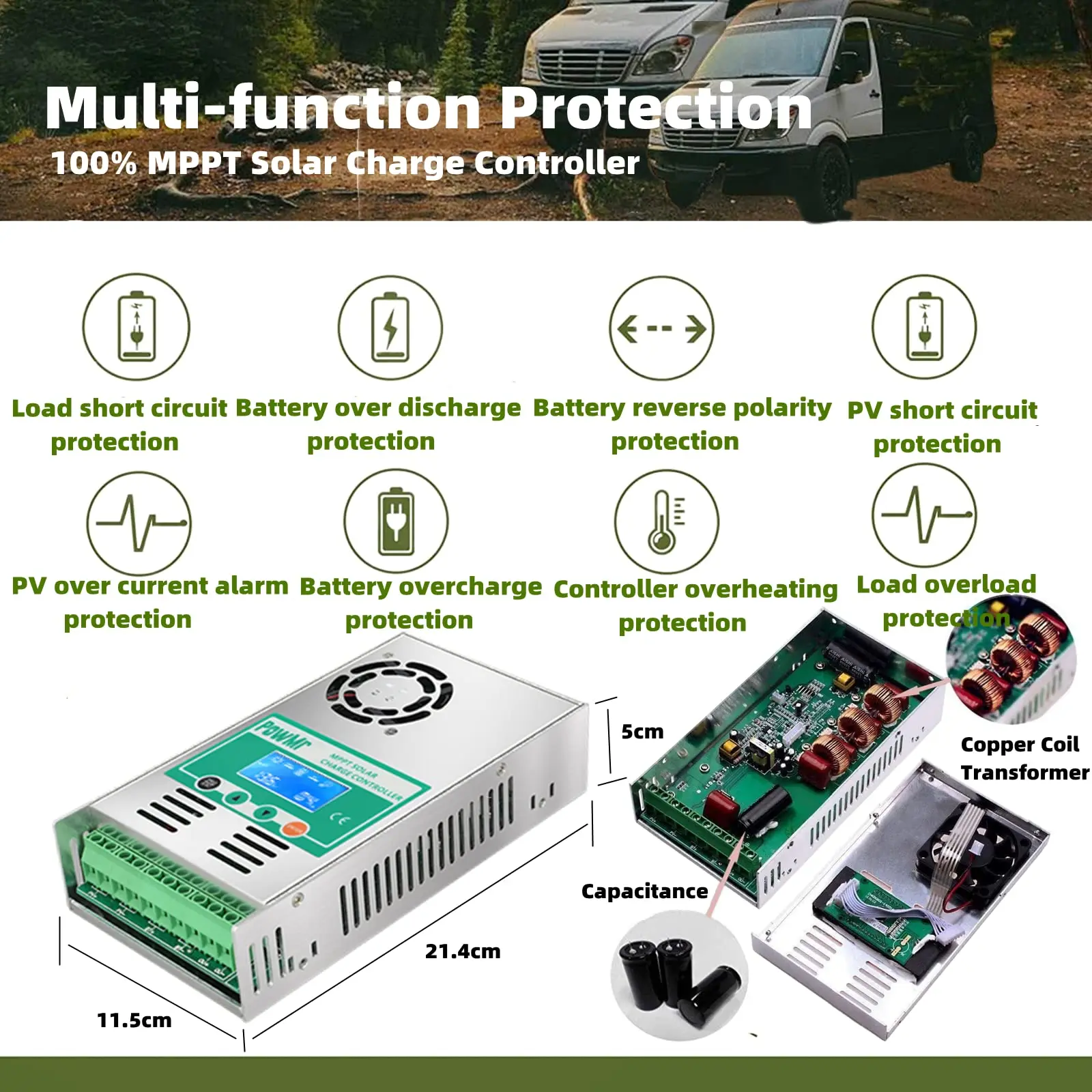

Reverse polarity protection of solar panel
-
Overcharge protection
-
Can be mounted easily
-
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
>>Specification
|
Model No. |
HHJ-60A Board Set |
|
Charging mode |
MPPT Maximum power point tracking automatically |
|
Charging |
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge |
|
System type |
DC12V/24V/36V/48V Recognition automatically |
|
System voltage automatic recognition |
12V system (DC9V-DC15V) |
|
24V system (DC18V-DC29V) |
|
|
36V system (DC30V-DC39V) |
|
|
48V system (DC40V~DC60V) |
|
|
Soft start time |
≤1S |
|
Dynamic response and recovery time |
100us |
|
Max efficiency |
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) |
|
PV utilization |
≥99% |
|
Input specification |
|
|
Voc from PV ( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. ) |
12V system (DC20V~DC80V) |
|
24V system (DC37V~DC105V) |
|
|
36V system (DC50V~DC160V) |
|
|
48V system (DC72V~DC160V) |
|
|
The maximum PV input voltage (Voc) |
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.) |
|
The maximum PV input power (The total power rated of PV can’t be over this watt that will break the controller.) |
12V system (720W) |
|
24V system (1440W) |
|
|
36V system (2100W) |
|
|
48V system (2800W) |
|
|
Output specification |
|
|
Selectable battery type(default is Sealed) |
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) |
|
Absorption Charging Voltage |
Refer to Batteries charging reference |
|
Floating Charging Voltage |
|
|
Overcharging protection voltage |
12V system (15V) |
|
24V system (30V) |
|
|
36V system (45V) |
|
|
48V system (60V) |
|
|
Rated output current |
60A |
|
Temperature Coefficient |
±0.02%/ centi-degree |
|
utomatic temperature compensation |
14.2V-(Max temperature-25 centi-degree)*0.3 |
|
Output voltage ripple-peak |
100mV |
|
Output voltage accurac |
≤±1% |
|
Input Anti-intrusion protection |
yes |
|
Temperature Protection |
75°C |
|
Temperature increased protection |
Output power will reduce when it’s more 70 °C Output power will be normal when it’s less 55 °C |
|
Fan-on temperature |
>40 °C |
|
Fan-off temperature |
<35 °C |
|
Acoustic noise |
≤40dB |
|
Cooling way |
Forced air cooling. |
|
Components |
Imported materials, Accord to EU standards, Industrial grade range. |
|
Environmental requirements |
Meet 2002/95/EC; No cadmium, hydrides and fluorides |
|
Security Level |
Accord to CE, PSE, FCC, EMC, EN60950 |
|
Electromagnetic Compatibility |
Accord to EN61000, EN55022, EN55024 |
|
Enclosure |
IP21 |
PACKAGE:
Option 1:

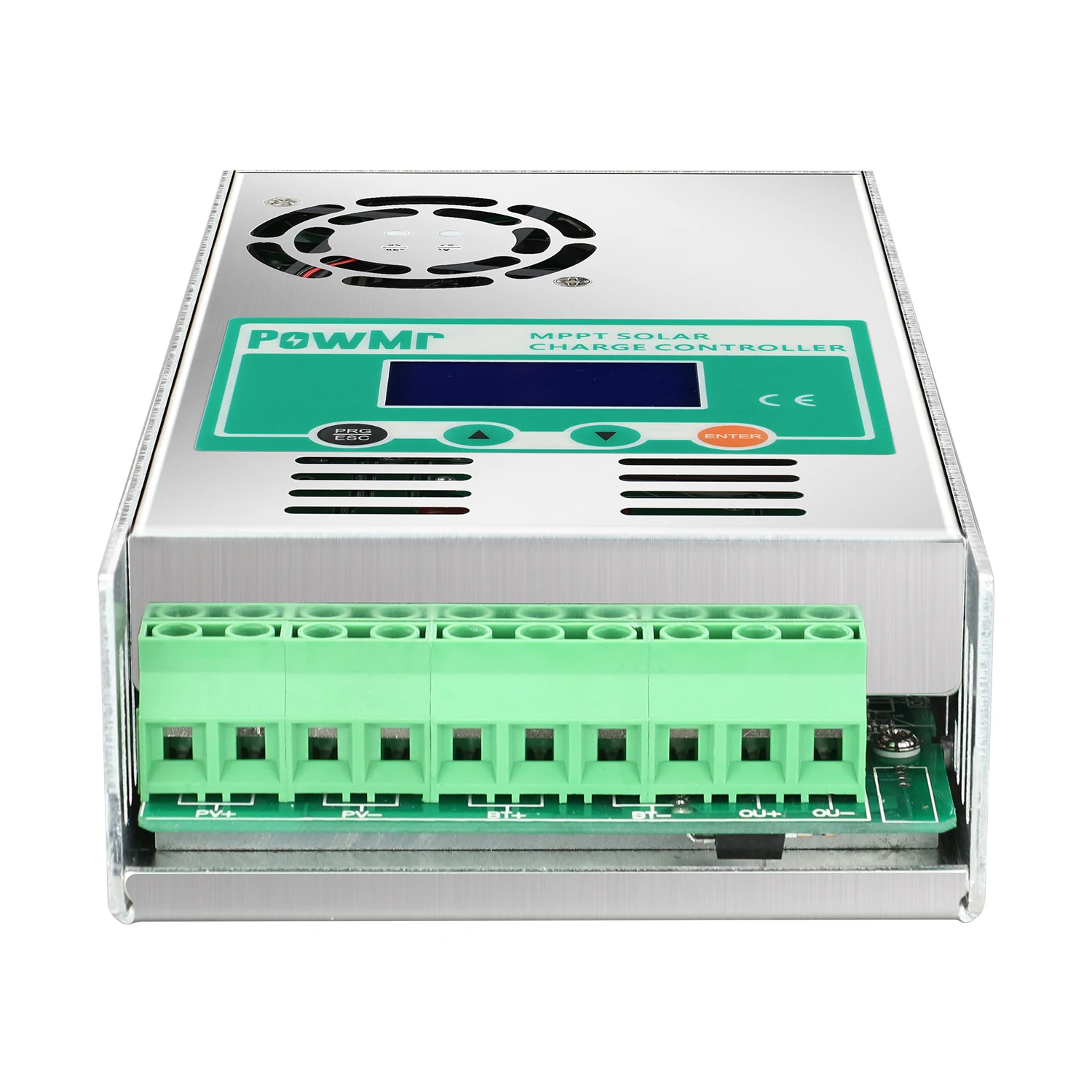

1. Complete MPPT Solar Controller 60A*1
2. User Manual (English)*1
Option 2:
1. Mainboard*1
2. Display Screen*1
3. Fan*1
4. Cable for Screen*1
5. Brand Stick*1
6. Screws(Package)*1
If something miss, pls contact customer service in store first.
